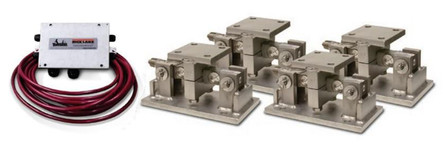

Rice Lake RL1600HE Hostile Environment Compression Mount Kits are ideal for hoppers, tanks, blenders, food processing, and custom weighing applications. This kit includes four RL75016WHE stainless steel double-ended beam load cells, four RL1600HE stainless steel modules, a JB4SS junction box, and 25 ft of EL147HE SURVIVOR load cell cable. Each RL75016WHE load cell is hermetically sealed, IP69K rated for hostile environments, and comes with a 25 ft cable for connecting back to the j-box.
Features
- Hermetically sealed, IP69K load cell for hostile environments
- Four fully stainless steel modules and load cells
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR load cell cable
- Each individual load cells cable length is 25 ft
- Module bolts directly to tank leg without requiring additional load buttons or mounting plates
- Center loaded double end beam design
- 150% capacity safe overload
Documentation
Rice Lake RL1600HE Data Sheet Rice Lake RL75016WHE Data Sheet
2 year limited manufacturer's warranty
- Individual Load Cell Capacity Rating:
- 20,000 lb
- Combined Capacity Rating:
- 80,000 lb
- Recommended Capacity of Completed Scale:
- 40,000 lb
- Load Cell Safe Overload:
- 150% capacity
- Load Cell Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Load Cell Output:
- 3 mV/V
- Output Resistance:
- 699 ohm to 707 ohm
- Input Resistance:
- 686 ohm to 714 ohm
- Construction:
- Stainless steel
- IP Rating:
- IP69K
- Seal Type:
- Hermetically sealed
- Load Cell Other Approvals:
- FM
- Load Cell Cable Length:
- 25 ft
- Load Cell Color Code:
- Red = +Excitation, Black = -Excitation, Green = +Signal, White = -Signal
- Part Number:
- 84665
- Model:
- RL1600HE-20,000 lb (4)
- Manufacturer:
- Rice Lake Weighing Systems
