Rice Lake Survivor RL1600HE-10,000 lb Weigh Module Kit (4)

MSRP: $8,800.00
$8,360.00
(Save $440.00)
Part #:
46732
Availability:
Typically ships in 1-2 days

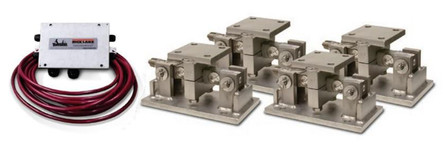

Rice Lake RL1600HE Hostile Environment Compression Mount Kits are ideal for hoppers, tanks, blenders, food processing, and custom weighing applications. This kit includes four RL75016WHE stainless steel double-ended beam load cells, four RL1600HE stainless steel modules, a JB4SS junction box, and 25 ft of EL147HE SURVIVOR load cell cable. Each RL75016WHE load cell is hermetically sealed, IP69K rated for hostile environments, and comes with a 25 ft cable for connecting back to the j-box.

Features

  • Hermetically sealed, IP69K load cell for hostile environments
  • Four fully stainless steel modules and load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR load cell cable
  • Each individual load cells cable length is 25 ft
  • Module bolts directly to tank leg without requiring additional load buttons or mounting plates
  • Center loaded double end beam design
  • 150% capacity safe overload

Documentation

Rice Lake RL1600HE Data Sheet Rice Lake RL75016WHE Data Sheet

2 year limited manufacturer's warranty
Individual Load Cell Capacity Rating:
10,000 lb
Combined Capacity Rating:
40,000 lb
Recommended Capacity of Completed Scale:
20,000 lb
Load Cell Safe Overload:
150% capacity
Load Cell Rated Excitation:
5-10 VDC (maximum of 15 V)
Load Cell Output:
3 mV/V
Output Resistance:
699 ohm to 707 ohm
Input Resistance:
686 ohm to 714 ohm
Construction:
Stainless steel
IP Rating:
IP69K
Seal Type:
Hermetically sealed
Load Cell Other Approvals:
FM
Load Cell Cable Length:
25 ft
Load Cell Color Code:
Red = +Excitation, Black = -Excitation, Green = +Signal, White = -Signal
Part Number:
46732
Model:
RL1600HE-10,000 lb (4)
Manufacturer:
Rice Lake Weighing Systems
