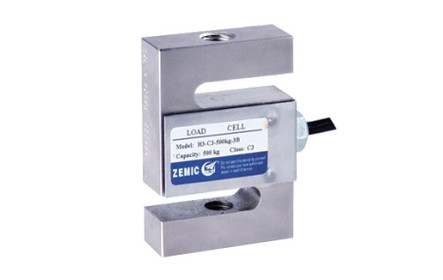

Zemic H3-N10-1.5K-6YB 1500 lb S-Beam Load Cell, NTEP
Features
- 1500 lb capacity rating
- NTEP approved
- Alloy steel construction, nickel plated
- IP67 rating
- 3 mV/V output
- Load cell cable length 20 ft
- Safe overload up to 150% capacity
Common Applications
- OEM
- Crane scales
- Hoppers
- Tank scales
- Tension and compression
Interchange
- Sensortronics 60001-0221 Compact
- Celtron STC
- Coti Global CISB
Documentation
1 year limited manufacturer's warranty
- Manufacturer:
- Zemic
- Model:
- H3-N10-1.5K-6YB
- NTEP:
- Yes
- NTEP CC:
- 06-099A1
- Capacity:
- 1500 lb
- Safe Overload:
- 150% capacity
- Ultimate Overload:
- 300% capacity
- Height:
- 2.5"
- Length:
- 2"
- Width:
- 0.88"
- Hole Threading:
- 1/2-20UNF
- Construction:
- alloy steel
- Finish:
- nickel plated
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-12 VDC (maximum of 18 V)
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 351 (+/- 3.5) ohms
- Input Resistance:
- 350 (+/- 3.5) ohms
- Compensated Temperature Range:
- 14‚°F to 104‚°F (-10‚°C to 40‚°C)
- Operating Temperature Range:
- -31‚° F to 158‚° F / -35‚°C to 70‚°C
- IP Rating:
- IP67
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 20 ft
- Cable Diameter:
- ƒÃ‹œ0.2in
