USED/Pre-owned Notice: All used units are inspected by Scales Plus technicians to ensure proper performance that meets manufacturer specifications. These units may include slight blemishes including light scratches, scuffs or other markings. Units deemed qualified for re-sale in our used category will not have any major imperfections. All functions will be intact and working appropriately.
Features
- 5000 lb capacity rating
- NTEP approved (view certificate below)
- Alloy steel construction, nickel plated
- IP67 rating
- 3 mV/V output
- Load cell cable length 10 ft
- Safe overload up to 150% capacity
Common Applications
- OEM
- Floor scales
- Low profile scales
- Hoppers
- Tank scales
Interchange
- Rice Lake Weighing Systems RL35023/39123
- Sensortronics 65023
- Zemic H8C
- Anyload 563YH

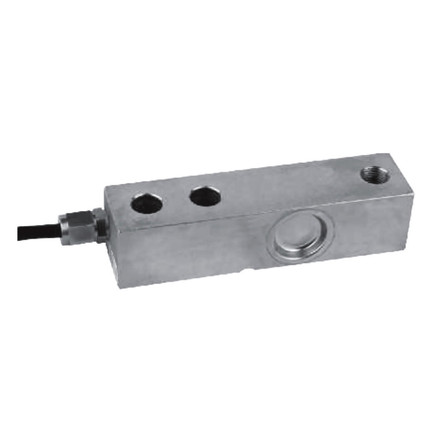

Keli SQBY Certificate Of Conformance NTEP Approved
- Manufacturer:
- Keli
- Model:
- SQBY-A-5Klb
- Capacity:
- 5000 lb
- NTEP:
- Yes
- NTEP CC:
- 08-009A2
- Safe Overload:
- 150% capacity
- Ultimate Overload:
- 180% capacity
- Construction:
- alloy steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 10-12 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 350 (+/- 3) ohms
- Input Resistance:
- 400 (+/-10) ohms
- Compensated Temperature Range:
- 14°F to 104°F (-10°C to 40°C)
- Operating Temperature Range:
- -30°C to 70°C
- IP Rating:
- IP67
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 10 ft
