USED/Pre-owned Notice: All used units are inspected by Scales Plus technicians to ensure proper performance that meets manufacturer specifications. These units may include slight blemishes including light scratches, scuffs or other markings. Units deemed qualified for re-sale in our used category will not have any major imperfections. All functions will be intact and working appropriately.

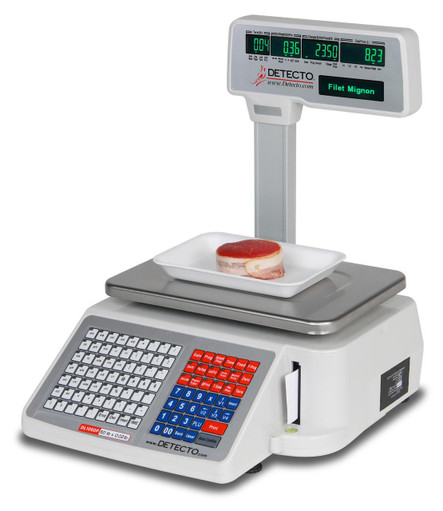

The Cardinal Detecto DL series price computing scale includes an integrated thermal printer and easy to use software for managing labels and PLUs. With the included software an end user has access to up to 50 label types and can store up to 15 black and white bitmap images for customizing the labels. This software also allows for the end user to create a backup of their scales specifications for simplified duplication and recovery. Connectivity is made easy through the multiple interface options including RS-232, Ethernet, USB, and a cash drawer connection port. Firmware updates can be performed using a USB so the NTEP seal does not need to be broken. Ultimately, the DL series is well priced and simplified for the end user all while being backed by a 2 year limited manufacturer's warranty!
Features
- Raised pillar display that offers simplified visibility
- 60 lb capacity with 0.02 lb readability
- NTEP approved for legal for trade applications
- Integrated thermal printer with up to different labels through the included software
- Flexible and easy to use software included with the scale
- Software is also capable of providing a full backup of all specifications which allows the duplication of the scales setup
- Quick and easy reloading of receipt and paper rolls
- 4 LED display windows and 1 dot matrix text screen
- Simplified communication through RS-232, Ethernet, and USB
- Capable of being connected to a cash drawer
- 5990 PLUs and 40 standard speed keys that can be doubled to 80 by utilizing the shift key
- Simplified importing and exporting of PLU data to and from Excel
- Stores up to 15 black-and-white bitmap images to customize your labels, including QR codes and store logos
- Security password capable to ensure no tampering with personalized setting
Documentation
DL Series Bulletin DL Series PC Utility Manual DL Series Operation Manual
- Manufacturer:
- Detecto
- Model:
- DL1060P
- Capacity:
- 60 lb
- Readability:
- 0.02 lb
- Minimum Weight:
- 0.4 lb per NTEP
- NTEP:
- Yes
- Class:
- III
- Scale Dimensions:
- 13.8 in W x 17.4 in D x 18.1 in H
- Weighing Platform Dimensions:
- 12.8 in W X 8.9 in D
- Base Construction:
- Stainless steel platform and ABS plastic scale enclosure
- Display Digits:
- 4 digit Tare, 6 digit Unit Price, 5 digit Weight, 6 digit Total Price
- Operating Temperature:
- 32° F – 104° F
- Max PLUs:
- 5990
- Total Keys:
- 103
- Speed Keys:
- 63 but doubles to 126 when utilizing the Shift key
- Interface:
- USB, Ethernet, RS232 serial, and cash drawer port
- Printer Typer:
- Thermal
- Label Size:
- 40 mm by 60mm with 128mm in length
- Available Label Types via Included Software:
- 50
- Power Source:
- 120VAC, 50-60 Hz (AC power cord included)
