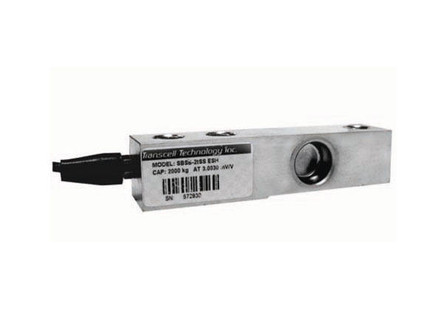

Transcell SBSB-2.5K 2500 lb Stainless Steel Single Ended Beam Load Cell
The Transcell SBSB series single ended beam load cells are a high quality option for medium to high capacity weighing applications. Their stainless steel construction and hermetically sealed IP68 rating ensure that they will continue to perform in extremely difficult working conditions.
Features
- 2500 lb capacity rating
- Stainless steel construction
- Safe overload up to 150% capacity
- Hermetically sealed IP68 rated for use in extremely harsh environments
Interchange
- Rice Lake RL35023
- RTI 9123
- Celtron SQB HSS
- Sensortronics 65023 SS
Documentation
- Capacity Rating:
- 2500 lb
- Safe Overload:
- 150%
- Length:
- 5.12"
- Hole Thread:
- 1/2€-20 UNF
- Cable Length:
- 20 ft
- IP Rating:
- IP68
- Seal Type:
- Hermetically sealed
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 10 VDC (15 V maximum)
- Full Scale Output:
- 3 mV/V ± 0.1%
- Output Impendance:
- 350 (± 3) ohm
- Input Impendance:
- 387 (± 5) ohm
- Insulation Resistance:
- 5,000 megohms
- Manufacturer:
- Transcell
- Model:
- SBSB-2.5K
