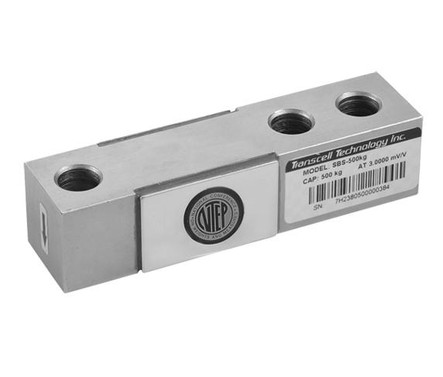

Transcell SBS-500 500 lb Single Ended Beam Load Cell
The Transcell SBS series single ended beam load cells are a high quality option for medium to high capacity weighing applications. They are most commonly used in floor scales and tank scales and with an IP67 rating you can be sure of the durability in difficult environments.
Features
- 500 lb capacity rating
- Alloy steel construction with nickle plating
- Safe overload up to 150% capacity
- IP67 rated for use in harsh environments
Interchange
- Sensortronics 65023A
- Rice Lake RL30000 (threaded)
- Rice Lake RL35023
- Tedea-Huntleigh 3411
- Celtron SQB
- Artech 30310
Documentation
- Capacity Rating:
- 500 lb
- Safe Overload:
- 150%
- Length:
- 5.12"
- Height:
- 1.25"
- Width:
- 1.25"
- Hole Thread:
- 1/2€-20 UNF
- Cable Length:
- 20 ft
- IP Rating:
- IP67
- Construction / Finish:
- Alloy steel, nickle plated
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 10 VDC (15 V maximum)
- Full Scale Output:
- 3 mV/V ± 0.1%
- Output Impendance:
- 350 (± 3) ohm
- Input Impendance:
- 387 (± 5) ohm
- Insulation Resistance:
- 5,000 megohms
- Safe Temperature Range:
- -10°C to 70°C
- Operating Temperature Range:
- -10°C to 50°C
- Manufacturer:
- Transcell
- Model:
- SBS-500
