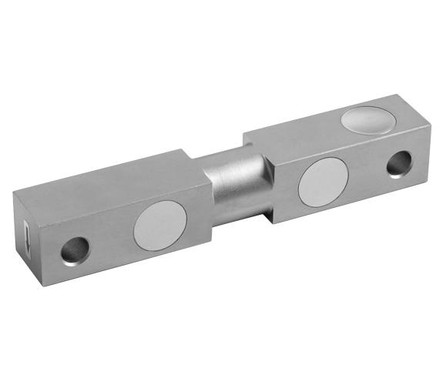

Transcell DBS-2.5K Double Ended Beam Load Cell
The DBS series from Transcell are highly durable, stable, and easy to use load cells for use in warehouses, inventory scales, and more.
Features
- 2,500 lb capacity rating
- Alloy steel construction
- 3 mV/V output
- Load cell cable length 6m
- Safe overload up to 150% capacity
Interchange Options
- Rice Lake RL750116
- RTI 5203
- Sensortronics 65016
- Celtron DSR
Documentation
- Capacity Rating:
- 2,500 lb
- Safe Overload:
- 150% capacity
- Length:
- 7.5"
- Width:
- 1.22"
- Height:
- 1.22"
- Construction / Finish:
- Alloy Steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 10V DC/AC (15V Maximum)
- Full Scale Output:
- 3.0 mV/V ± 10%
- Output Resistance:
- 700 (± 5) ohms
- Input Resistance:
- 775 (± 20) ohms
- Insulation Resistance:
- 5000 megohms
- Nonlinearity:
- 0.03% full scale
- Hysteresis:
- 0.03% full scale
- Operating Temperature Range:
- 14° F to 158° F / -10°C to 70°C
- Cable Length:
- 6 m
- Manufacturer:
- Transcell
- Model:
- DBS-2.5K
