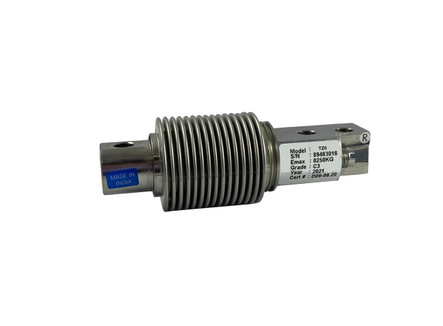

Totalcomp TZ6-50 Single Ended Beam Load Cell, 50 kg

MSRP: $406.51
$365.86
(Save $40.65)
Part #:
2816
Availability:
Typically ships in 1-2 days

Totalcomp TZ6 series single ended beam load cells are commonly used in light to medium capacity weighing applications. Totalcomp TZ6 series shear beam load cells have a through hole, 3 meters of load cell cable, and are constructed of stainless steel with an IP68 rating.

Features

  • Stainless steel
  • Through hole
  • 2 mV/V output
  • IP68 rating, hermetically sealed
  • Load cell cable length 3 meters
  • Safe overload up to 150% capacity

Interchange

  • HBM Z6
  • Revere SHB
  • Tedea DC6
  • Cardinal CB6
  • Toledo 777

Documentation

Totalcomp TZ6 Data Sheet

1 year limited manufacturer's warranty
Capacity:
50 kg
Construction:
Stainless steel
IP Rating:
IP68
Seal Type:
Hermetically sealed
Cable Color Code:
Blue = + Excitation, Black = - Excitation, Green = + Sense, Grey = - Sense, White = + Signal, Red = - Signal, Bare = Shield
Rated Excitation:
10 VDC (maximum of 15 V)
Full Scale Output:
2 mV/V
Input Resistance:
380 ohms
Output Resistance:
350 ohms
Nonlinearity:
0.03 % full scale
Hysteresis:
0.03 % full scale
Zero Balance:
+/- 0.04% full scale
Safe Overload:
150 % full scale
Ultimate Overload:
300 % full scale
Safe Temperature Range:
-10C to 40C
Operating Temperature Range:
-30C to 70C
Cable Length:
3 meter
Manufacturer:
Totalcomp
Model:
TZ6-50
Part Number:
2816
