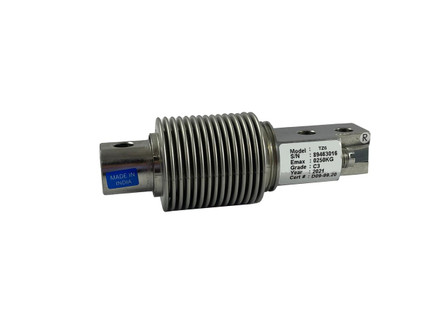

Totalcomp TZ6 series single ended beam load cells are commonly used in light to medium capacity weighing applications. Totalcomp TZ6 series shear beam load cells have a through hole, 3 meters of load cell cable, and are constructed of stainless steel with an IP68 rating.
Features
- Stainless steel
- Through hole
- 2 mV/V output
- IP68 rating, hermetically sealed
- Load cell cable length 3 meters
- Safe overload up to 150% capacity
Interchange
- HBM Z6
- Revere SHB
- Tedea DC6
- Cardinal CB6
- Toledo 777
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 100 kg
- Construction:
- Stainless steel
- IP Rating:
- IP68
- Seal Type:
- Hermetically sealed
- Cable Color Code:
- Blue = + Excitation, Black = - Excitation, Green = + Sense, Grey = - Sense, White = + Signal, Red = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 380 ohms
- Output Resistance:
- 350 ohms
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.03 % full scale
- Zero Balance:
- +/- 0.04% full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- -10C to 40C
- Operating Temperature Range:
- -30C to 70C
- Cable Length:
- 3 meter
- Manufacturer:
- Totalcomp
- Model:
- TZ6-100
- Part Number:
- 2817
