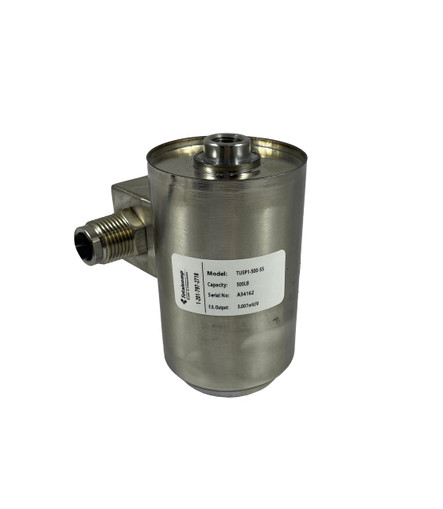

Totalcomp TUSP1 series canister load cells are constructed with hermetically sealed stainless steel casings, 50 ft of cable, and are backed with an IP67 rating. Totalcomp TUSP1 series load cells are interchangeable with the Revere USP load cells.
Model TUSP1-2.5K-HT-SS is a high temperature resistant load cell that can withstand up to 400 degrees F.
Features
- Stainless steel
- 3 mV/V output
- IP67 rating, hermetically sealed
- Load cell cable length 30 ft
- Safe overload up to 150% capacity
Interchange
- Revere USP
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 2500 lb
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Seal Type:
- Hermetically sealed
- Combined Error:
- +/- 0.05 % full scale
- Nonlinearity:
- +/- 0.05 % full scale
- Hysteresis:
- +/- 0.03 % full scale
- Zero Balance:
- +/- 1.00 % full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Compensated Temperature Range:
- 10F to 110F
- Operating Temperature Range:
- 10F to 400F
- Cable Length:
- 50 ft
- Manufacturer:
- Totalcomp
- Model:
- TUSP1-2.5K-HT-SS
- Part Number:
- 492
