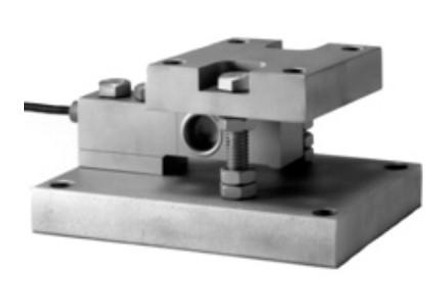

Totalcomp TB745 series single ended beam load cells are commonly used in medium to heavy capacity weighing applications. This load cell includes the TTM module mount. Totalcomp TTM key features are overload and up lift protection, a self centering rocker pin, and expansion and contraction capability to account for thermal changes.
Features
- Module mount included
- Stainless steel
- Washdown safe
- Threaded hole
- 3 mV/V output
- IP67 rating, hermetically sealed
- Load cell cable length 15 ft
- Safe overload up to 150% capacity
Interchange
- Toledo 745
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 4000 lb
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Seal Type:
- Hermetically sealed
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.03 % full scale
- Zero Balance:
- 1 % full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- -10C to 40C
- Operating Temperature Range:
- -16C to 65C
- Cable Length:
- 15 ft
- Manufacturer:
- Totalcomp
- Model:
- TTM-4K-SS
- Part Number:
- 2537
