Totalcomp TTK-SS weigh modules are commonly used to convert tanks, bins, and hoppers into medium to heavy capacity scales. Totalcomp TTK3 series module kits includes three TSB-SS load cells, three TTK-SS modules, one CSB junction box, and a 20 ft homerun cable.

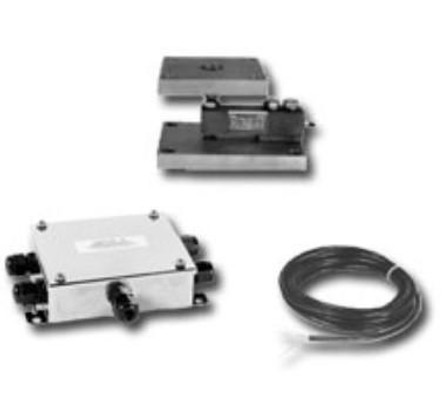

Weigh Module Kit Includes:
- (3) 250 lb TSB-SS stainless steel single ended beam load cells
- (3) TSWM-SS stainless steel spherical washer mounting assembly for single ended beam
- (1) CSB compact stainless steel summing junction box
- 20 ft 6 wire homerun cable
Load Cell Features
- Stainless steel construction
- 3 mV/V output
- IP67 rating
- Load cell cable length 20 ft
- Safe overload up to 150% capacity
Documentation
Totalcomp TSB Single Ended Beam Data Sheet Totalcomp TTK Weigh Module Data Sheet
1 year limited manufacturer's warranty
- Individual Load Cell Capacity Rating:
- 250 lb
- Combined Capacity Rating:
- 750 lbs
- Recommended Capacity of Completed Scale:
- 375 lbs
- Construction:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Safe Overload:
- 150 % full scale
- Operating Temperature Range:
- -16C to 65C
- Cable Length:
- 20 ft
- Manufacturer:
- Totalcomp
- Model:
- TTK3-250-SS
- Part Number:
- 3516
