Totalcomp TSP51-25 Single Point Load Cell, 25 lb

MSRP: $354.59
$319.13
(Save $35.46)
Part #:
426
Availability:
Typically ships in 1-2 days

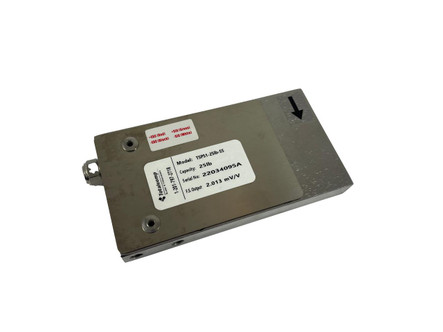

Totalcomp TSP51 series single point load cells are constructed of stainless steel with an IP67 protection rating. Totalcomp TSP51 series load cells include a 10 ft cable and a 2 mV/V output.

Features

  • Stainless steel construction
  • 2 mV/V output
  • IP67 rating
  • Load cell cable length 10 ft
  • Safe overload up to 150% capacity
  • Mounting screws are 1/4-28 UNF(fine) with 3/4" spacing on both top and bottom

Interchange

  • Sensortronics 60051

Documentation

Totalcomp TSP51 Datasheet

1 year limited manufacturer's warranty
Capacity:
25 lb
Construction:
Stainless steel
Cable Color Code:
Green = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
Rated Excitation:
10 VDC (maximum of 15 V)
Full Scale Output:
2 mV/V
Input Resistance:
380 ohms
Output Resistance:
350 ohms
IP Rating:
IP67
Nonlinearity:
0.03 % full scale
Cable Length:
10 ft
Manufacturer:
Totalcomp
Model:
TSP51-25
Part Number:
426
