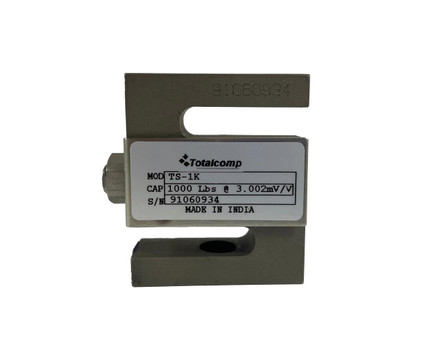

Totalcomp TS series s-beam load cells are commonly used in suspended weighing applications such as hoppers and tanks. Totalcomp TS series s-beam load cells feature a threaded hole, 150% safe overload capacity, 20 ft load cell cable, and are constructed of alloy steel. NTEP approved models are from 25lb to 40,000lb capacities.
Features
- Alloy steel with nickel plated construction
- Threaded hole
- 3 mV/V output
- IP67 rating
- Load cell cable length 20 ft
- Safe overload up to 150% capacity
Documentation
- Capacity:
- 10,000 lb
- NTEP:
- Yes
- Class:
- III/IIIL
- NTEP CC:
- 93-028
- Hole Threading:
- 3/4-16 UNF
- Construction:
- Alloy steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V AC-DC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 380 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Safe Range:
- 0 to 175°F
- Cable Length:
- 20 ft
- Manufacturer:
- Totalcomp
- Model:
- TS-10K
- Part Number:
- 2197
