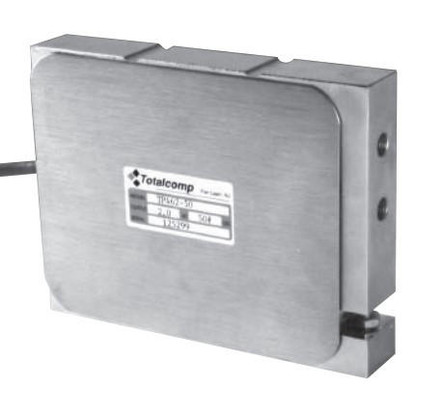

Totalcomp TP462 series single point load cells are constructed of aluminum and feature an IP67 protection rating. Totalcomp TP462 series load cells include a 10 ft cable and a 2 mV/V output.
Features
- Aluminum construction
- 2 mV/V output
- IP67 rating
- Load cell cable length 10 ft
Interchange
- Revere 462
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 20 lb
- Construction:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Orange = Shield
- Rated Excitation:
- 15 VDC
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Seal Type:
- Environmentally sealed
- Safe Temperature Range:
- 0 F to 150 F
- Cable Length:
- 10 ft
- Manufacturer:
- Totalcomp
- Model:
- TP462-20
- Part Number:
- 1238
