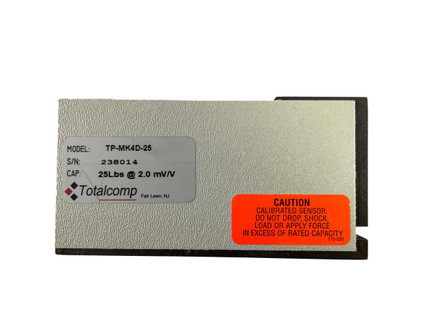

Totalcomp TP-MK4D-SS series single point load cells are constructed of stainless steel and feature an IP67 protection rating. Totalcomp TP-MK4D-SS series load cells include a 10 ft cable and safe overload rating of up to 300% capacity.
Features
- Stainless steel construction
- 2 mV/V output
- IP67 rating
- Load cell cable length 10 ft
- Safe overload up to 300% capacity
- Overload stops for both compression and tension loads
Interchange
- NCI Model MK 4
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 30 lb
- Construction:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, White = + Signal, Green = - Signal
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Seal Type:
- Environmentally sealed
- Total Error:
- 0.3 % full scale
- Safe Overload:
- 300 % full scale
- Safe Temperature Range:
- 14C to 122C
- Cable Length:
- 10 ft
- Manufacturer:
- Totalcomp
- Model:
- TP-MK4D-30-SS
- Part Number:
- 2431
