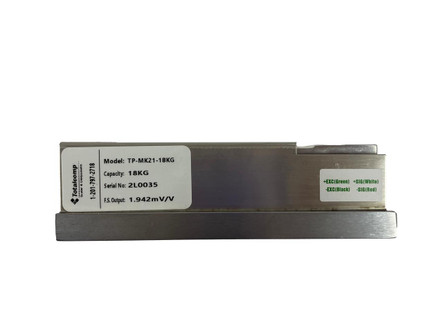

Totalcomp TP-MK21 series single point load cells are constructed of stainless steel and are backed by an IP67 rating. Totalcomp TP-MK21 series load cells also include a 10 ft cable and an ultimate overload rating of up to 500% capacity.
Features
- Stainless steel construction
- 1 mV/V output
- IP67 rating
- Load cell cable length 10 ft
- Safe overload up to 150% capacity
Interchange
- NCI MK-21 for NCI 3270 scale
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 35 kg
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Orange = Shield
- Rated Excitation:
- 15 VDC
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 500 % full scale
- Cable Length:
- 10 ft
- Manufacturer:
- Totalcomp
- Model:
- TP-MK21-35
- Part Number:
- 1611
