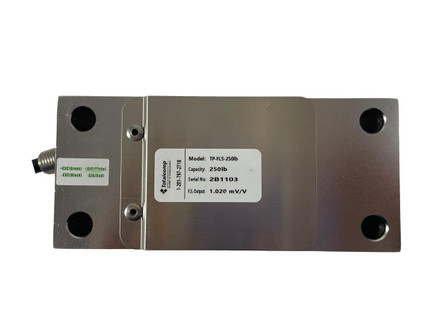

Totalcomp TP-FLS series single point load cells are constructed of stainless steel and are backed by an IP67 rating. Totalcomp TP-FLS series load cells also include a 10 ft cable and a safe overload rating of up to 200% capacity.
Features
- Stainless steel construction
- 1 mV/V output
- IP67 rating
- Load cell cable length 10 ft
- Safe overload up to 200% capacity
Interchange
- Weigh-Tronix FLS
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 250 lb
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 1 mV/V
- Input Resistance:
- 400 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Combined Error:
- 0.03 % full scale
- Nonlinearity:
- 0.02 % full scale
- Hysteresis:
- 0.02 % full scale
- Zero Balance:
- 1 % full scale
- Safe Overload:
- 200 % full scale
- Ultimate Overload:
- 300 % full scale
- Compensated Range:
- -10C to 40C
- Safe Temperature Range:
- -20C to 60C
- Cable Length:
- 10 ft
- Manufacturer:
- Totalcomp
- Model:
- TP-FLS-250
- Part Number:
- 4207
