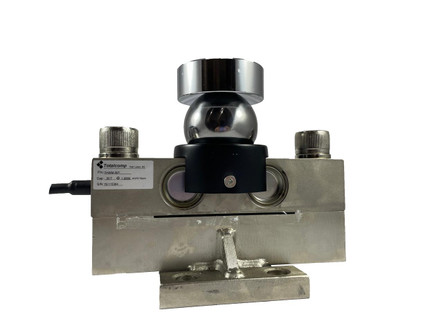

Totalcomp THWM series double ended beam load cells have an IP68 rating, 40 ft of cable, and include the load cell mount. Totalcomp THWM series handles capacities ranging from 10 to 50 tons.
Features
- Alloy steel construction, nickel plated
- Mount included
- 2 mV/V output
- IP68 rating, hermetically sealed
- Load cell cable length 40 ft
- Safe overload up to 150% capacity
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 100,000 lb
- Construction:
- Alloy steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Clear = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 700 ohms
- Output Resistance:
- 700 ohms
- IP Rating:
- IP68
- Seal Type:
- Hermetically sealed
- Combined Error:
- +/- 0.02 % full scale
- Nonlinearity:
- +/- 0.17 % full scale
- Hysteresis:
- +/- 0.02 % full scale
- Zero Balance:
- +/- 1.50 % full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- -10C to 40C
- Operating Temperature Range:
- -35C to 69C
- Cable Length:
- 40 ft
- Manufacturer:
- Totalcomp
- Model:
- THWM-50t
- Part Number:
- 7236
