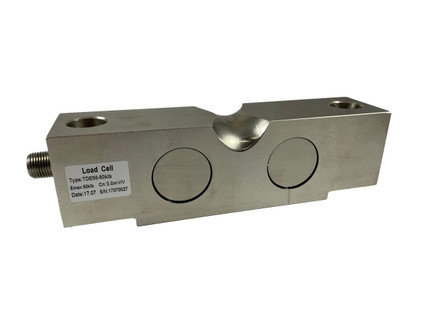

Totalcomp TDE58 series double ended beam load cells are commonly used as an interchange for Sensortronics 65058 series load cells. Totalcomp TDE58 series load cells have an IP67 rating, 35 ft of cable, and a 300% ultimate overload rating.
Features
- Alloy steel nickel plated construction
- 3 mV/V output
- IP67 rating
- Load cell cable length 35 ft
- Safe overload up to 150% capacity
Interchange
- Sensortronics 65058
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 20,000 lb
- Construction:
- Alloy steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 25V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 700 ohms
- Output Resistance:
- 700 ohms
- IP Rating:
- IP67
- Combined Error:
- 0.02 % full scale
- Nonlinearity:
- 0.02 % full scale
- Hysteresis:
- 0.02 % full scale
- Zero Balance:
- +/- 1.00% full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- -10C to 40C
- Operating Temperature Range:
- -16C to 65C
- Cable Length:
- 35 ft
- Manufacturer:
- Totalcomp
- Model:
- TDE58-20K
- Part Number:
- 4663
