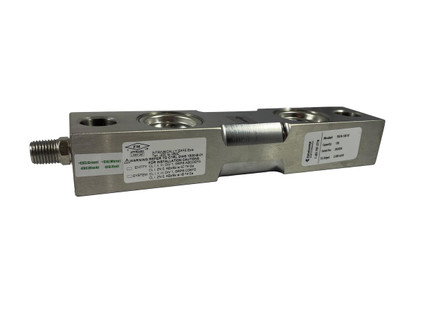

Totalcomp TDE16-5K-SS Double Ended Beam Load Cell, 5000 lb

MSRP: $537.08
$488.37
(Save $48.71)
Part #:
2385
Availability:
Typically ships in 1-2 days

Totalcomp TDE16-SS series double ended beam load cells are commonly used in medium to heavy capacity weighing applications. Totalcomp TDE16-SS series load cells have an IP67 rating, are constructed of stainless steel, and feature a 150% overload rating.

Features

  • Stainless steel construction
  • Through holes
  • 3 mV/V output
  • IP67 rating
  • Load cell cable length 50 ft
  • Safe overload up to 150% capacity

Interchange

  • Sensortronics 65016

Documentation

Totalcomp TDE16-SS Data Sheet

1 year limited manufacturer's warranty
Capacity:
5000 lb
Construction:
Stainless steel
Cable Color Code:
Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
Rated Excitation:
10 VDC (maximum of 20V)
Full Scale Output:
3 mV/V
Input Resistance:
700 ohms
Output Resistance:
700 ohms
IP Rating:
IP67
Combined Error:
0.02 % full scale
Nonlinearity:
0.03 % full scale
Hysteresis:
0.02 % full scale
Zero Balance:
+/- 1.00% full scale
Safe Overload:
150 % full scale
Ultimate Overload:
300 % full scale
Safe Temperature Range:
-10C to 40C
Operating Temperature Range:
-20C to 60C
Cable Length:
50 ft
Manufacturer:
Totalcomp
Model:
TDE16-5K-SS
Part Number:
2385
