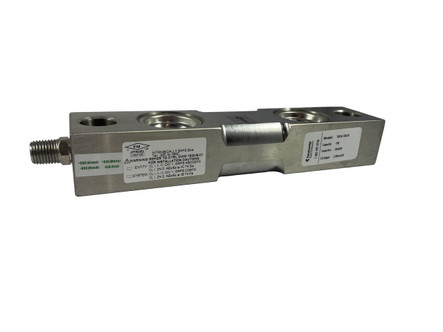

Totalcomp TDE16-SS series double ended beam load cells are commonly used in medium to heavy capacity weighing applications. Totalcomp TDE16-SS series load cells have an IP67 rating, are constructed of stainless steel, and feature a 150% overload rating.
Features
- Stainless steel construction
- Through holes
- 3 mV/V output
- IP67 rating
- Load cell cable length 50 ft
- Safe overload up to 150% capacity
Interchange
- Sensortronics 65016
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 2500 lb
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10 VDC (maximum of 20V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 700 ohms
- Output Resistance:
- 700 ohms
- IP Rating:
- IP67
- Combined Error:
- 0.02 % full scale
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Zero Balance:
- +/- 1.00% full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- -10C to 40C
- Operating Temperature Range:
- -20C to 60C
- Cable Length:
- 50 ft
- Manufacturer:
- Totalcomp
- Model:
- TDE16-2.5K-SS
- Part Number:
- 2383
