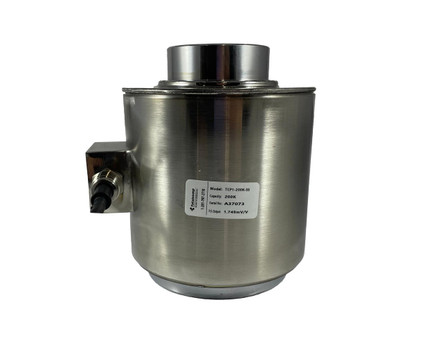

Totalcomp TCP1 and TCSP1 series are a tough canister load cell designed for high-capacity industrial use. They are constructed with welded, hermetically sealed, and stainless steel casings which enables them to perform in extreme environmental conditions. TCP1 and TCSP1 series load cells are intended for use with truck, track hopper, and tank scales.
Features
- Stainless steel
- 1.75 mV/V output
- IP67 rating, hermetically sealed
- Load cell cable length 30 ft
- Safe overload up to 150% capacity
Interchange
- Revere model CP
- TI model 392
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 10,000 lb
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 1.75 mV/V
- Input Resistance:
- 450 ohms
- Output Resistance:
- 480 ohms
- IP Rating:
- IP67
- Seal Type:
- Hermetically sealed
- Combined Error:
- +/- 0.15 % full scale
- Nonlinearity:
- +/- 0.15 % full scale
- Hysteresis:
- +/- 0.03 % full scale
- Zero Balance:
- +/- 1.00 % full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 400 % full scale
- Safe Temperature Range:
- -12C to 43C
- Operating Temperature Range:
- -12C to 43C
- Cable Length:
- 30 ft
- Manufacturer:
- Totalcomp
- Model:
- TCP1-10K-SS
- Part Number:
- 1860
