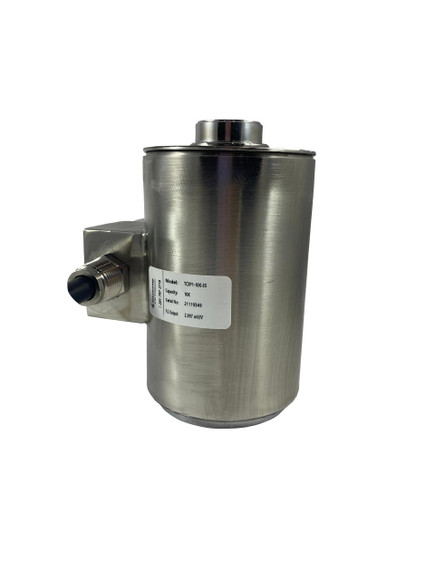

Totalcomp TC3P1 series canister load cells are designed for medium to heavy capacity industrial applications. They are constructed with hermetically sealed stainless steel casings, which allows them to perform in extremely demanding conditions.
Features
- Stainless steel
- 3 mV/V output
- IP67 rating, hermetically sealed
- Load cell cable length 30 ft
- Safe overload up to 150% capacity
- REQUIRES 1/2-20 UNF Load Button (PN: 272), order separately
Interchange
- BLH Model T3P1
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 3000 lb
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Seal Type:
- Hermetically sealed
- Combined Error:
- +/- 0.05 % full scale
- Nonlinearity:
- +/- 0.05 % full scale
- Hysteresis:
- +/- 0.03 % full scale
- Zero Balance:
- +/- 1.00 % full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- 10F to 110F
- Operating Temperature Range:
- 10F to 110F
- Cable Length:
- 30 ft
- Manufacturer:
- Totalcomp
- Model:
- TC3P1-3K-SS
- Part Number:
- 1882
