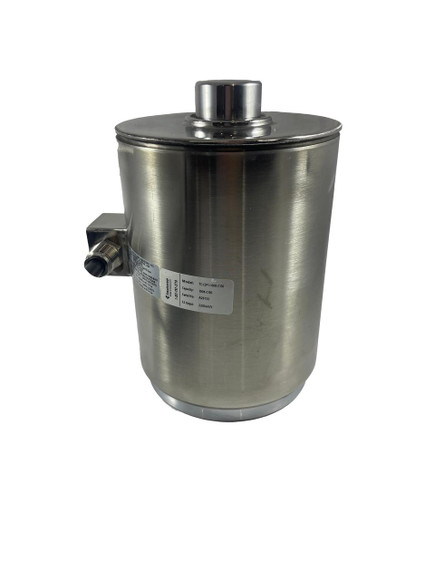

Totalcomp TC-C2P1 series canister load cells are designed for heavy capacity industrial applications. They are constructed with stainless steel casings and carry an IP67 rating, which allows them to perform in demanding conditions.
Features
- Stainless steel
- 2 mV/V output
- IP67 rating
- Load cell cable length 30 ft
- Safe overload up to 150% capacity
- REQUIRES 1 1/2-12 UNF Load Button (PN: 274), order separately
Interchange
- BLH Model C2P1
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 20,000 lb
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Seal Type:
- Environmentally sealed
- Combined Error:
- +/- 0.05 % full scale
- Nonlinearity:
- +/- 0.05 % full scale
- Hysteresis:
- +/- 0.03 % full scale
- Zero Balance:
- +/- 1.00 % full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- -10C to 40C
- Operating Temperature Range:
- -16C to 65C
- Cable Length:
- 30 ft
- Manufacturer:
- Totalcomp
- Model:
- TC-C2P1-20K-SS
- Part Number:
- 1885
