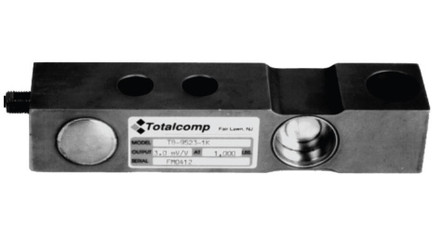

Totalcomp TB9523 series single ended beam load cells are commonly used in medium to heavy capacity weighing applications. Totalcomp TB9523 series shear beam load cells have a threaded hole, 20 ft load cell cable, and are hermetically sealed with an IP67 rating.
Features
- Stainless steel
- Threaded hole
- 3 mV/V output
- IP67 rating, hermetically sealed
- Load cell cable length 20 ft
- Safe overload up to 150% capacity
Interchange
- Sensortronics 65023
- Revere 5123/9123
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 5000 lb
- Construction:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Seal Type:
- Hermetically sealed
- Nonlinearity:
- 0.002 % full scale
- Hysteresis:
- 0.005 % full scale
- Zero Balance:
- - 0.2% full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- -14F to 104F
- Operating Temperature Range:
- -65F to 200F
- Cable Length:
- 20 ft
- Hole Threading:
- 3/4-16 UNF
- Manufacturer:
- Totalcomp
- Model:
- TB9523-5K
- Part Number:
- 983
