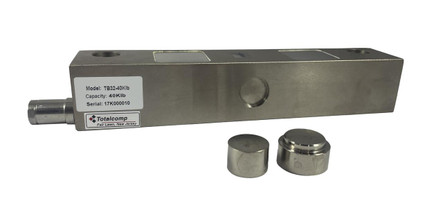

Totalcomp TB32 series double ended beam load cells are commonly used in medium to heavy capacity weighing applications. Totalcomp TB32 series load cells have an IP67 rating, 35 ft of cable, and a 150% overload rating.
Features
- Alloy steel nickel plated construction
- 3 mV/V output
- IP67 rating
- Load cell cable length 35 ft
- Safe overload up to 150% capacity
- Load cell has load button installed
Interchange
- Epelsa STR (LC32)
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 40,000 lb
- Construction:
- Alloy steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10 VDC (maximum of 20V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 700 ohms
- Output Resistance:
- 700 ohms
- IP Rating:
- IP67
- Combined Error:
- 0.03 % full scale
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Zero Balance:
- +/- 1.00% full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- -10C to 40C
- Operating Temperature Range:
- -20C to 60C
- Cable Length:
- 35 ft
- Manufacturer:
- Totalcomp
- Model:
- TB32-40K
- Part Number:
- 1709
