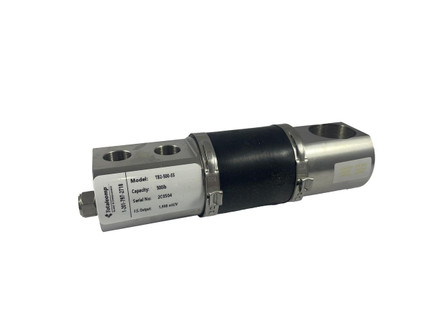

Totalcomp TB2 series single ended beam load cells are commonly used in light to medium capacity weighing applications. Totalcomp TB2 series shear beam load cells include a 15 ft load cell cable, are constructed of stainless steel, and carry an IP67 rating.
Features
- Stainless steel construction with neoprene rubber seal
- 2 mV/V output
- IP67 rating
- Load cell cable length 15 ft
- Safe overload up to 150% capacity
Interchange
- Toledo 2155 platform
- Toledo 2885 platform
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 1000 lb
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Yellow = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 440 ohms
- Output Resistance:
- 450 ohms
- IP Rating:
- IP67
- Combined Error:
- 0.03 % full scale
- Nonlinearity:
- 0.05 % full scale
- Hysteresis:
- 0.02 % full scale
- Zero Balance:
- 1 % full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- -10C to 40C
- Cable Length:
- 15 ft
- Manufacturer:
- Totalcomp
- Model:
- TB2-1K-SS
- Part Number:
- 1460
