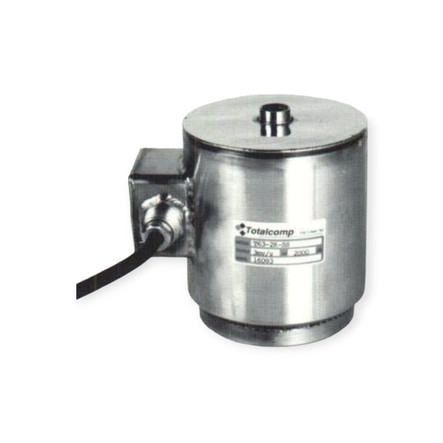

Totalcomp T62 and T63 series canister load cells are constructed with hermetically sealed stainless steel casings, 30 ft of cable, and are backed with an IP67 rating. The T62 series features a 2 mV/V output and the T63 series features a 3 mV/V output3
Features
- Stainless steel
- 3 mV/V output
- IP67 rating, hermetically sealed
- Load cell cable length 30 ft
- Safe overload up to 200% capacity
Interchange
- RTI Model 63H
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 1000 lb
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Seal Type:
- Hermetically sealed
- Non-repeatability:
- +/- 0.01 % RO
- Zero Balance:
- +/- 1.00 % full scale
- Safe Overload:
- 200 % full scale
- Ultimate Overload:
- 300 % full scale
- Compensated Temperature Range:
- 0F to 150F
- Operating Temperature Range:
- -65F to 200F
- Cable Length:
- 30 ft
- Manufacturer:
- Totalcomp
- Model:
- T63-1K-SS
- Part Number:
- 3168
