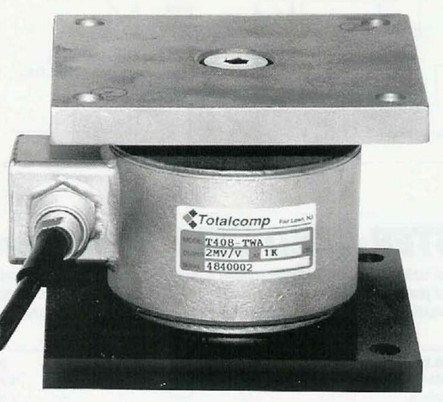

Totalcomp T408 series canister load cells are constructed with alloy steel casings, 25 ft of cable, and are backed with an IP67 rating. This cannister load cell includes the mounting assembly with two self aligning plates. The mount style also allows for thermal expansion and features a built in leveling assembly for simplified installation.
Features
- Alloy steel, nickel plated
- Mount assembly included
- 2 mV/V output
- IP67 rating
- Load cell cable length 25 ft
- Safe overload up to 200% capacity
Interchange
- Beowulf model 408 Flexmaster
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 300 lb
- Construction:
- Alloy steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 20 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 1050 ohms
- Output Resistance:
- 1000 ohms
- IP Rating:
- IP67
- Nonlinearity:
- +/- 0.05 % full scale
- Hysteresis:
- +/- 0.03 % full scale
- Repeatability:
- +/- 0.02 % full scale
- Zero Balance:
- +/- 0.10 % full scale
- Safe Overload:
- 200 % full scale
- Ultimate Overload:
- 400 % full scale
- Operating Temperature Range:
- -30F to 175F
- Cable Length:
- 25 ft
- Manufacturer:
- Totalcomp
- Model:
- T408-300
- Part Number:
- 3823
