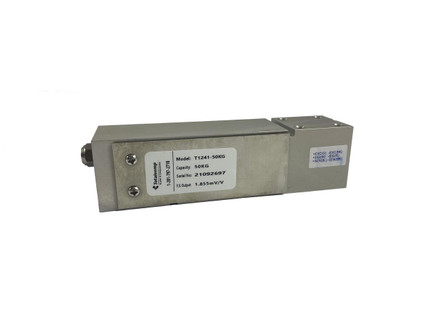

Totalcomp 1241 series single point load cells are constructed of aluminum and are backed by an IP67 rating. Totalcomp 1241 series load cells also include a 10 ft cable and a safe overload rating of up to 150% capacity.
Features
- Aluminum construction
- 2 mV/V output
- IP67 rating
- Load cell cable length 10 ft
- Safe overload up to 150% capacity
Interchange
- Tedea 1241
- General Sensor GS1241
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 50 kg
- Construction:
- Aluminum
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Blue = + Sense, Brown = - Sense, White = + Signal, Red = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 385 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Combined Error:
- 0.05 % full scale
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Zero Balance:
- 1 % full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Compensated Range:
- -10C to 40C
- Safe Temperature Range:
- -20C to 60C
- Cable Length:
- 10 ft
- Manufacturer:
- Totalcomp
- Model:
- T1241-50kg
- Part Number:
- 8359
