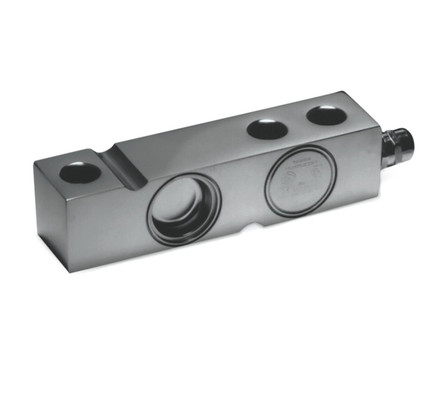

Features
- Stainless steel construction
- Welded seal IP68 rating
- Safe overload up to 150% full scale
- 5 meters of cable
Interchange
- Sensortronics VPG 65083
- Celtron VPG SQB-HSS
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 1000 lb
- Approvals:
- FM, NTEP
- NTEP:
- Yes
- Class:
- III
- Safe Overload:
- 150% at center loading point
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Blue = +Excitation, Black = -Excitation, White = +Signal, Red = -Signal, Green = + Sense, Grey = -Sense
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 350 (+/- 3) ohm
- Input Resistance:
- 415 (+/- 15) ohm
- Insulation Resistance:
- 1000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type:
- Welded seal
- IP Rating:
- IP68
- Cable Length:
- 5 meters
- Cable Diameter:
- 0.220 Polyurethane jacket
- Manufacturer:
- Tedea-Huntleigh VPG
- Model:
- 3510-1K
