Features
- Anodized aluminum construction
- Environmentally sealed, IP66
- Safe overload up to 150% capacity over center loading pin
- 5 ft of cable
Interchange
- Transcell FAV
Documentation
1 year limited manufacturer's warranty

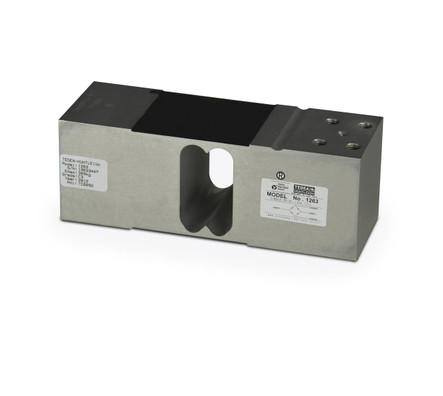

- Manufacturer:
- VPG Tedea-Huntleigh
- Model:
- 1263-500kg
- Approvals:
- OIML C3
- Capacity Rating:
- 500 kg
- Safe Overload:
- 150% capacity
- Length:
- 174 mm
- Height:
- 62.5 mm
- Width:
- 60 mm
- Thredding:
- M8-6
- Construction / Finish:
- Anodized Aluminum
- Cable Color Code:
- Green +Excitation, Black €“Excitation, Red +Signal, White €“Signal
- Rated Excitation:
- 10 VAC (15 V maximum)
- Full Scale Output:
- 2.0 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 415 (± 15) ohm
- Insulation Resistance:
- 2,000 megohms
- Operating Temperature Range:
- 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type:
- Environmentally sealed, IP66
- Total Error:
- 0.02 % full scale
- Cable Length:
- 5 ft
- Cable Diameter:
- 0.200 PVC jacket
- Max Platform Size:
- 24" x 24"
