Features
- Anodized aluminum construction
- Environmentally sealed, IP66
- Safe overload up to 150% capacity over center loading pin
- 10 ft of cable
Interchange
- Rice Lake RL1260
- Rice Lake RL26018A
- VPG 1260
Documentation
1 year limited manufacturer's warranty

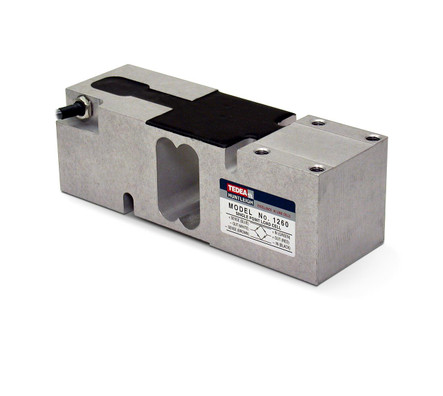

- Manufacturer:
- VPG Tedea-Huntleigh
- Model:
- 1260S-100kg
- Approvals:
- FM, NTEP 1:10,000 Class III
- Capacity Rating:
- 100 kg
- Safe Overload:
- 150% capacity
- Length:
- 188 mm
- Height:
- 52 mm
- Width:
- 63 mm
- Thredding:
- 5/16-18 UNC
- Construction / Finish:
- Anodized Aluminum
- Cable Color Code:
- Green +Excitation, Black €“Excitation, Red +Signal, White €“Signal, Blue +Sense, Brown €“Sense
- Rated Excitation:
- 5 to 10 VDC (15 V maximum)
- Full Scale Output:
- 2.0 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 415 (± 15) ohm
- Insulation Resistance:
- 2,000 megohms
- Compensated Temperature Range:
- 14 °F to 104 °F (-10 °C to 40 °C)
- Operating Temperature Range:
- 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type:
- Environmentally sealed, IP66
- Total Error:
- 0.02 % full scale
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.220 in Polyurethane jacket
- Max Platform Size:
- 24" x 24"
