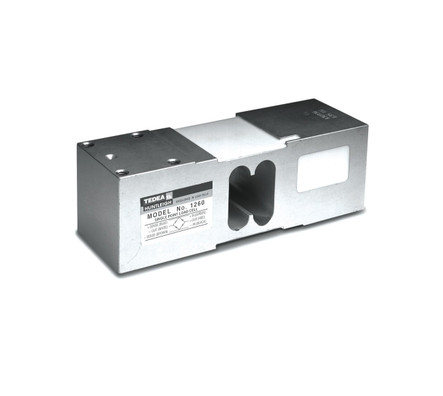

Tedea-Huntleigh VPG 1260-50kg Single Point Load Cell, NTEP

MSRP: $328.00
$311.60
(Save $16.40)
Part #:
40769
Availability:
Typically ships in 1-2 days

Features

  • Aluminum construction
  • Environmentally sealed IP67 rating
  • Safe overload up to 150% capacity over center loading pin
  • 10 ft of cable

Interchange

  • Rice Lake RL1260
  • Rice Lake RLPWM16

Documentation

Tedea-Huntleigh VPG 1260 Data Sheet

1 year limited manufacturer's warranty
Capacity:
50 kg
Approvals:
FM, NTEP
NTEP:
Yes
Class:
III
Safe Overload:
150% capacity
Thredding:
5/16-18 UNC
Construction / Finish:
Aluminum
Cable Color Code:
Green = +Excitation, Black = -Excitation, Red = +Signal, White = -Signal, Blue = +Sense, Brown = -Sense
Rated Excitation:
5-10 VDC (15 V maximum)
Full Scale Output:
2 mV/V
Output Resistance:
350 (± 3) ohm
Input Resistance:
415 (± 15) ohm
Insulation Resistance:
2,000 megohms
Compensated Temperature Range:
14° F to 104° F / -10°C to 40°C
Operating Temperature Range:
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type:
Environmentally sealed
IP Rating:
IP67
Cable Length:
10 ft
Cable Diameter:
0.220 PVC jacket
Max Platform Size:
24" x 24"
Manufacturer:
Tedea-Huntleigh VPG
Model:
1260-50kg
