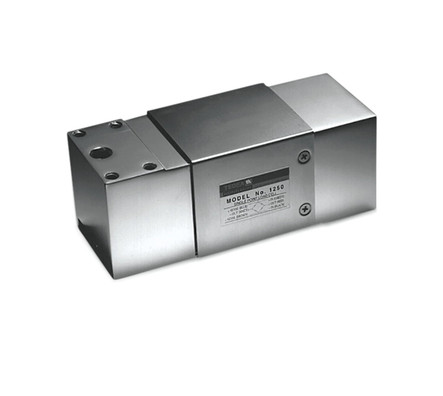

Tedea-Huntleigh VPG 1250-50kg Single Point Load Cell, 10ft cable, NTEP

MSRP: $365.00
$346.75
(Save $18.25)
Part #:
17478
Availability:
Typically ships in 1-2 days

Features

  • Anodized aluminum construction
  • Environmentally sealed IP67 rating
  • Safe overload up to 150% capacity over center loading pin
  • 10 ft of cable

Interchange

  • Rice Lake RL1218A
  • Rice Lake RL1250
  • Flintec PCB
  • Transcell FAY

Documentation

Tedea-Huntleigh VPG 1250 Data Sheet

1 year limited manufacturer's warranty
Capacity:
50 kg
Approvals:
FM, NTEP
NTEP:
Yes
Class:
III
Safe Overload:
150% capacity
Thredding:
5/16-18 UNC
Construction / Finish:
Anodized aluminum
Cable Color Code:
Green = +Excitation, Black = -Excitation, Red = +Signal, White = -Signal, Blue = +Sense, Brown = -Sense
Rated Excitation:
5-10 VDC (15 V maximum)
Full Scale Output:
2 mV/V
Output Resistance:
350 ohm
Input Resistance:
350 ohm
Insulation Resistance:
2,000 megohms
Compensated Temperature Range:
14Ā° F to 104Ā° F / -10Ā°C to 40Ā°C
Operating Temperature Range:
0 Ā°F to 150 Ā°F (-18 Ā°C to 65 Ā°C)
Seal Type:
Environmentally sealed
IP Rating:
IP67
Max Platform Size:
50 to 500 kg: 800 Ɨ 800 mm and 635 to 1,000 kg: 600 Ɨ 600 mm
Cable Length:
10 ft
Cable Diameter:
0.200 PVC jacket
Manufacturer:
Tedea-Huntleigh VPG
Model:
1250-50kg
