Features
- Stainless steel construction
- Environmentally sealed, IP66
- Safe overload up to 200% capacity over center loading pin
- 1.5 meter of cable
Interchange
- Avery Weigh-Tronix MK29
Documentation
1 year limited manufacturer's warranty
- Manufacturer:
- VPG Tedea-Huntleigh

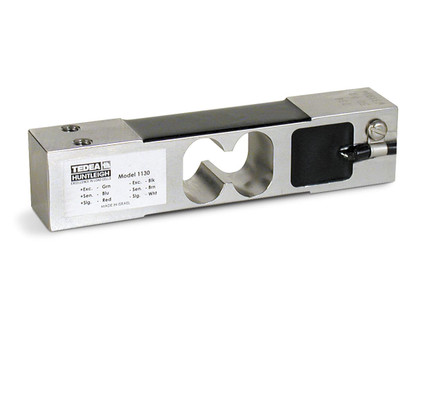

- Model:
- 1130-100kg
- Approvals:
- FM, NTEP
- Certification:
- NTEP Certified 1:4000 III
- Capacity Rating:
- 100 kg
- Safe Overload:
- 200% capacity
- Length:
- 135 mm
- Height:
- 30 mm
- Width:
- 25 mm
- Thredding:
- 1/4-20 UNC
- Construction / Finish:
- Stainless Steel
- Cable Color Code:
- Green +Excitation, Black €“Excitation, Red +Signal, White €“Signal, Blue +Sense, Brown €“Sense
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 385 (± 15) ohm
- Insulation Resistance:
- 2,000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type:
- IP66
- Total Error:
- 0.02 % full scale
- Deflection at Capacity:
- 0.015 in (0.4 mm)
- Cable Length:
- 1.5 m
- Cable Diameter:
- 0.200 in PVC jacket
- Max Platform Size:
- 15.75" x 15.75"
