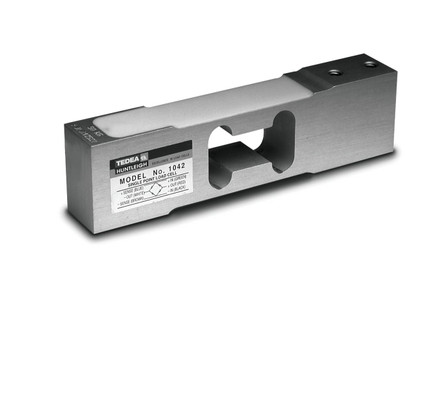

Tedea-Huntleigh VPG 1042-1kg Single Point Load Cell, NTEP

MSRP: $190.00
$180.50
(Save $9.50)
Part #:
40680
Availability:
Typically ships in 1-2 days

Features

  • Aluminum construction
  • Environmentally sealed IP66 rating
  • Safe overload up to 150% capacity over center loading pin
  • 10 ft of cable

Interchange

  • Rice Lake RL1042
  • Rice Lake RL42018A
1 year limited manufacturer's warranty
Capacity:
1 kg
Approvals:
FM, NTEP
Certification:
NTEP Certified 1:5000 III
Safe Overload:
150% capacity
Thredding:
1/4-20 UNC
Construction / Finish:
Aluminum
Cable Color Code:
Green = +Excitation, Black = -Excitation, Red = +Signal, White = -Signal, Blue = +Sense, Brown = -Sense
Rated Excitation:
5-10 VDC (15 V maximum)
Full Scale Output:
2 mV/V
Output Resistance:
350 (± 3) ohm
Input Resistance:
415 (± 15) ohm
Insulation Resistance:
2,000 megohms
Compensated Temperature Range:
14° F to 104° F / -10°C to 40°C
Operating Temperature Range:
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type:
Environmentally sealed
IP Rating:
IP66
Cable Length:
10 ft
Cable Diameter:
0.200 PVC jacket
Max Platform Size:
16" x 16"
Manufacturer:
Tedea-Huntleigh VPG
Model:
1042-1kg
