Features
- Metric threads
- Aluminum construction
- Environmentally sealed, potted IP65 rating
- Safe overload up to 150% capacity over center loading pin
- 10 ft of cable
Interchange
- Rice Lake RL1010
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 7 kg
- Approvals:
- FM, NTEP
- NTEP:
- Yes
- Class:
- III
- Combined Error:
- 0.02% full scale
- Safe Overload:
- 150% at center of loading point, full scale
- Thredding:
- M6
- Construction / Finish:
- Aluminum
- Cable Color Code:
- Green = +Excitation, Black = -Excitation, Red = +Signal, White = -Signal, Blue = +Sense, Brown = -Sense
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (+/- 3) ohm
- Input Resistance:
- 350 (+/- 3) ohm
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type:
- Environmentally sealed, Potted
- IP Rating:
- IP65
- Max Platform Size:
- 15.75" x 15.75"
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.200 PVC jacket

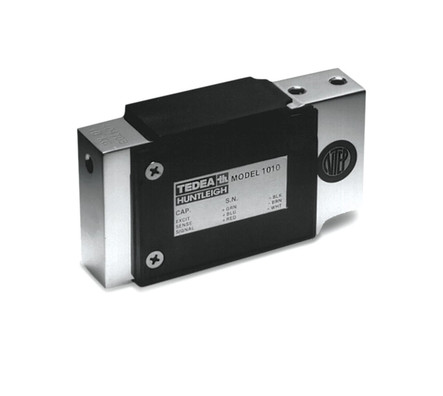

- Manufacturer:
- Tedea-Huntleigh VPG
- Model:
- 1015-7kg
