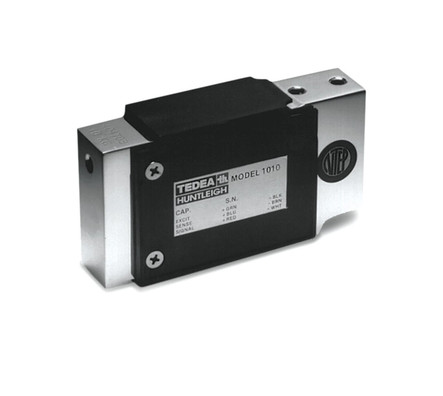

Tedea-Huntleigh VPG 1015-3kg Single Point Load Cell, Potted

MSRP: $222.00
$210.90
(Save $11.10)
Part #:
188804
Availability:
Typically ships in 1-2 days

Features

  • Metric threads
  • Aluminum construction
  • Environmentally sealed, potted IP65 rating
  • Safe overload up to 150% capacity over center loading pin
  • 10 ft of cable

Interchange

  • Rice Lake RL1010

Documentation

Tedea-Huntleigh VPG 1010/1015 Data Sheet

1 year limited manufacturer's warranty
Capacity:
3 kg
Combined Error:
0.02% full scale
Safe Overload:
150% at center of loading point, full scale
Thredding:
M6
Construction / Finish:
Aluminum
Cable Color Code:
Green = +Excitation, Black = -Excitation, Red = +Signal, White = -Signal, Blue = +Sense, Brown = -Sense
Rated Excitation:
5-10 VDC (15 V maximum)
Full Scale Output:
2 mV/V
Output Resistance:
350 (+/- 3) ohm
Input Resistance:
350 (+/- 3) ohm
Compensated Temperature Range:
14° F to 104° F / -10°C to 40°C
Operating Temperature Range:
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type:
Environmentally sealed, Potted
IP Rating:
IP65
Max Platform Size:
15.75" x 15.75"
Cable Length:
10 ft
Cable Diameter:
0.200 PVC jacket
Manufacturer:
Tedea-Huntleigh VPG
Model:
1015-3kg
