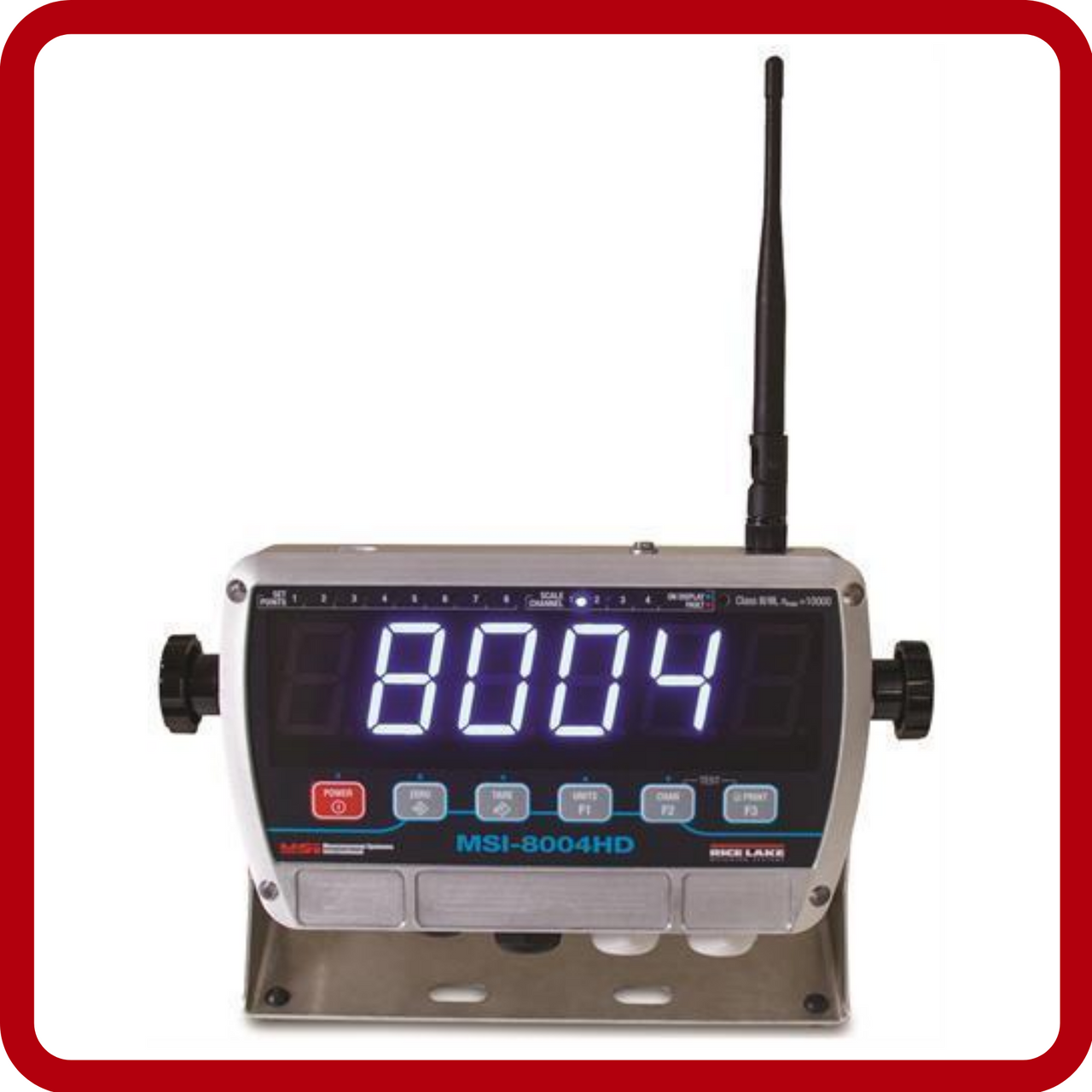

MSI 8004HD
The MSI 8004HD Indicator and RF Remote Display is a high quality scale indicator solution that is capable of direct panel mounting or mounting with the included tilt stand. It can be setup with all MSI-ScaleCore crane scales, dynamometers and TranSend systems. This compatibility allows the indicator to be utilized in crane cabs, desktops, and other distant operating areas from the actual measuring equipment. Communication is made possible through Wi-Fi, Bluetooth, or serial RF options. The display for the 8004HD is available either red/green or blue which allows the indicator to be visible in a wider variety of environments.
Scales Outlet is the best place to shop for the MSI 8004HD Digital Indicator and RF remote display. Our team of experts provides free technical support and application assistance. Need help finding the right equipment for your application? Contact us today!
Features
Construction: NEMA Type 4, IP65 rated aluminum milled enclosure
Display: Six-digit, 1.5 inch LED display with red/green coloring
Keypad: On/Off, Zero, Tare, Print and two user-defined keys
Functions: Peak hold, high resolution, total, view total, net/gross, and units switching
Units: Pounds, kilograms, tons, metric tons, kilonewtons
Annunciators: Stable, COZ, peak, kg, kN. lb, M, ton, setpoint, and function LEDs
Additional Options: Expanded relay outputs, battery pack for mobile operation, and Second radio module for additional network connectivity
Legal for Trade: NTEP certified configuration options available, CC #17-036
RF Remote Channels: Up to 4 remote sensors monitored individually, in pairs, or sum all in non-A/D version only when used with TranSend
RF Radion Link: 2.4 GHz 802.15.4, optional second channel for Serial RF, 802.11 Wi-Fi, cellular connectivity or Bluetooth
Relays: Two 5V coil, 250VAC, 5A relays
Data I/O: Two RS-232 hard wired communication ports
Warranty: One year limited manufacturer's warranty
