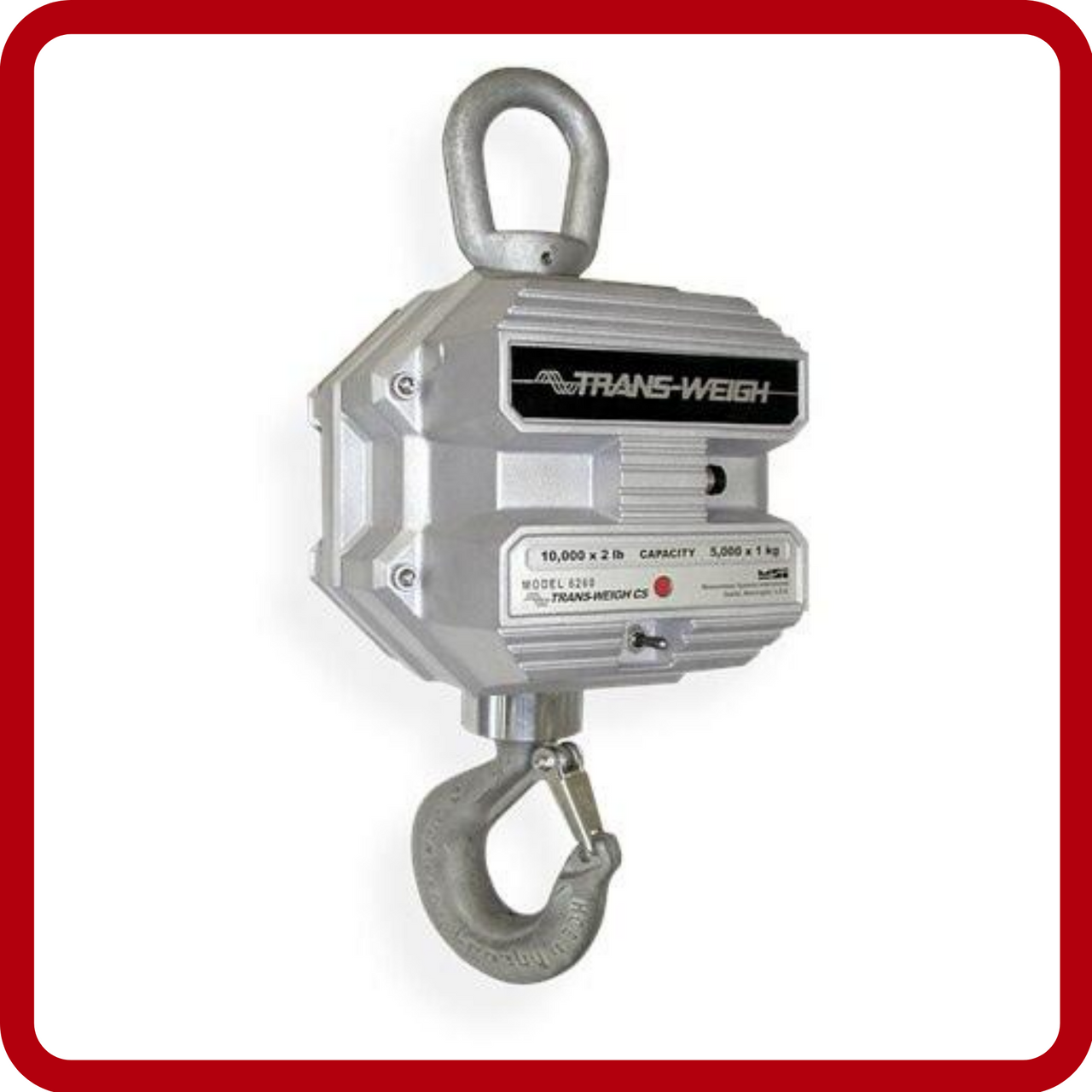

MSI 6260 Trans-Weigh Crane Scale

MSI 6260 Trans-Weigh

The MSI 6260 Trans-Weigh crane scale is the primary member of the CellScale product series. It is an industry-leading crane scale featuring RF wireless connectivity to all sorts of plant operation systems. With the wireless function the 6260 streamlines data collection, storage, and data transfer. The 6260 crane scale is commonly operated through handheld and desk mounted wireless indicators which often adds serial communication as an option to connect to PCs and PLCs. A typical wireless operating range is 500 ft indoors and approximately 1000 ft outdoors with the standard radio communication.

Durable by design, the 6260 is ideal for difficult environments with the marine grade 356 alloy anodized cast aluminum construction. It carries a NEMA Type 4 and IP66 rating for protection against water and other potentially damaging materials. Internal electronic components are setup to be shock resistant to handle the rough lifting applications that the scale is expected to perform. On top of these impressive features, the 6260 meets or exceeds OSHA, ANSI, and ASME standards.

Scales Outlet is the best place to shop for the MSI 6260 Trans-Weigh. Our team of experts provides free technical support and application assistance. Need help finding the right equipment for your application? Contact us today!

Features

Capacity Options: Capacity ranges from 500 lb up to 100,000 lb available

Standards: Meets or exceeds OSHA, ANSI, and ASME

Power: 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger, estimated 40 hours of operation between charges

Construction: 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger

Lifting Eye, Shackle & Hook: 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger

Overload: Safe overload up to 200% capacity and ultimate overload up to 500% capacity

Radio Link: FHSS at 2.4 GHz radio link with a typical indoor operation range of 500 ft and a typical outdoor range of 1000 ft

NTEP: NTEP configuration available for select models, CC 07-007

Options: • ScaleCore configurations available
• Anti-heat shielding for high-temperature applications
• Substitute bottom swivel hook with shackle
• Oversized top lifting eye or shackle
• Oversized bottom hook
• Low headroom top adaptor
• Universal direct power supply; 85-265 VAC, 47-440 Hz / 130-300 VDC
• Wireless 802.11 b/g Ethernet connectivity
• MSI-6260CS retrofit kit - conversion kit to upgrade existing MSI-4260 crane scales to MSI-6260CS
• Custom top and bottom interfaces
• Potential receivers: MSI-9850, MSI-9750A, Scoreboard, TranSend
• Crane scale cart
