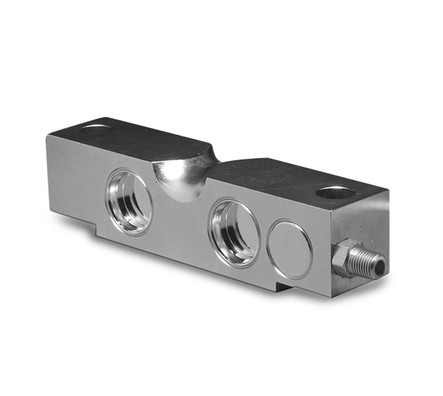

VPG Sensortronics 65058S double ended beam load cells feature full stainless steel construction and a welded seal with an IP67 rating. The double-ended beam design ensures uniform load distribution, minimizing eccentric load effects and improving overall weighing accuracy. These load cells are commonly used with tanks, hoppers, and truck scales.
Features
- Stainless steel construction
- Welded seal IP67 rating
- Load cell cable length of 35 ft
- Safe overload up to 150% capacity
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 100,000 lb
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- NTEP:
- Yes
- Class:
- IIIL
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 699 to 707 ohm
- Input Resistance:
- 686 to 714 ohm
- Insulation Resistance:
- 1000 megohms
- Construction / Finish:
- Stainless steel
- Seal Type:
- Welded seal
- IP Rating:
- IP67
- Cable Length:
- 35 ft
- Approvals:
- FM
- Manufacturer:
- Sensortronics VPG
- Model:
- 65058S-100K
