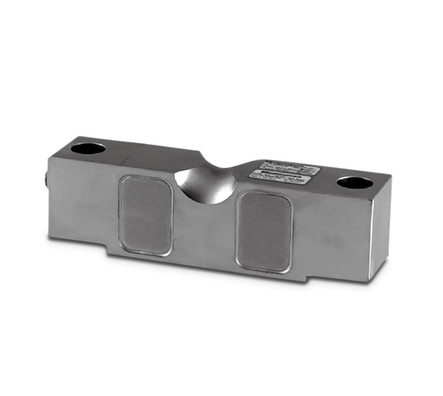

The Sensortronics VPG 65058A double ended beam load cell is constructed of alloy steel and features a environmental seal with an IP67 rating. The double-ended beam design ensures even load distribution and minimizing eccentric load effects. Capacities of this model range for 10,000 lbs all the up to 125,000 lbs. This load cell is commonly utilized with medium to heavy capacity tanks, hoppers, and truck scales.
Features
- Alloy steel with nickel plated construction
- Environmentally sealed with an IP67 rating
- Load cell cable length 35 ft
- Safe overload up to 150% capacity
Documentation
1year limited manufacturer's warranty
- Capacity:
- 75,000 lb
- NTEP:
- Yes
- Class:
- IIIL
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 699 to 707 ohm
- Input Resistance:
- 686 to 714 ohm
- Insulation Resistance:
- 5000 megohms
- Construction / Finish:
- Alloy steel, nickel plated
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 35 ft
- Approvals:
- FM
- Part Number:
- 21596
- Manufacturer:
- VPG Sensortronics
- Model:
- 65058A
