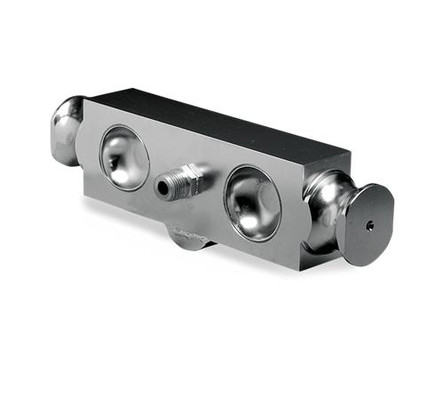

The Sensortronics VPG 65040S series double ended beam load cell is constructed of stainless steel and features a welded seal with an IP68 rating. The double-ended beam design ensures uniform load distribution, minimizing eccentric load effects and improving overall weighing accuracy. Capacities of this model range for 25,000 lbs all the up to 75,000 lbs.
Features
- Stainless steel construction
- Welded sealed with an IP68 rating
- Load cell cable length 35 ft
- Safe overload up to 150% capacity
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 75,000 lb
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Hole Threading:
- 1/4-18 NPT
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 699 to 707 ohm
- Input Resistance:
- 686 to 714 ohm
- Insulation Resistance:
- 5000 megohms
- Construction / Finish:
- Stainless steel
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP68
- Cable Length:
- 35 ft
- Approvals:
- FM, NTEP
- Part Number:
- 45471
- Manufacturer:
- VPG Sensortronics
- Model:
- 65040S-75K
