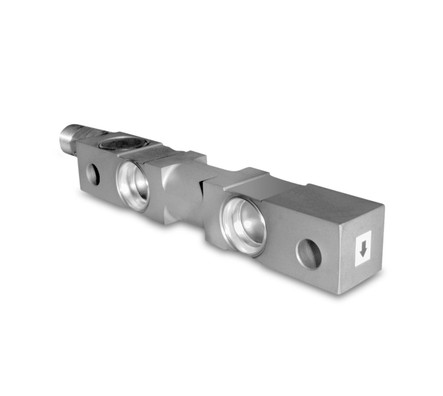

VPG Sensortronics 65016WH double ended beam load cells feature full stainless steel construction and are hermetically sealed with an IP68 rating. The double-ended beam design ensures uniform load distribution, minimizing eccentric load effects and improving overall weighing accuracy. These load cells are commonly used with medium to heavy capacity tanks and hoppers.
Features
- Stainless steel construction
- Hermetically sealed IP68 rating
- Load cell cable length of 25 ft
- Safe overload up to 150% capacity
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 1000 lb
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 699 to 707 ohm
- Input Resistance:
- 686 to 714 ohm
- Insulation Resistance:
- 5000 megohms
- Construction / Finish:
- Stainless steel
- Seal Type:
- Hermetically sealed
- IP Rating:
- IP68
- Cable Length:
- 25 ft
- Approvals:
- FM
- Manufacturer:
- Sensortronics VPG
- Model:
- 65016WH-1K
