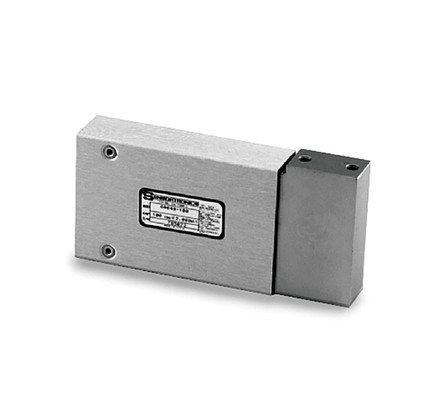

The Sensortronics VPG 60048SS load cell is designed to provide accurate weight and force measurements. It is constructed out of stainless steel and features a potted seal with an IP67 rating. The 60048SS includes 10 foot of load cell cable for connecting to your indicator or PLC.
Features
- Stainless steel construction
- Potted IP67
- 1 year limited manufacturer's warranty
- Safe overload up to 150% capacity
- 10 ft of cable
Interchange
- NCI®/WEIGH-TRONIX® Mark V
Documentation
1 year limited manufacturer's warranty
- Manufacturer:
- VPG Sensortronics
- Model:
- 60048SS-100lb
- Approvals:
- FM
- Capacity Rating:
- 100 lb
- Safe Overload:
- 150% capacity
- Length:
- 6.00"
- Height:
- 3.00"
- Width:
- 1.25"
- Thredding:
- 1/4-28€‰UNF × 0.75€‰DP
- Construction / Finish:
- Stainless Steel
- Cable Color Code:
- Red +Excitation, Black €“Excitation, Green +Signal, White €“Signal
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2.0 mV/V
- Output Resistance:
- 349 to 355 ohm
- Input Resistance:
- 350 to 450 ohm
- Insulation Resistance:
- 5,000 megohms
- Operating Temperature Range:
- 0° F to 150° F / -18°C to 65°C
- Seal Type:
- Environmentally sealed, IP67
- Hysteresis:
- 0.02 % full scale
- Deflection at Capacity:
- 0.013 in
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.200 in Polyurethane jacket
