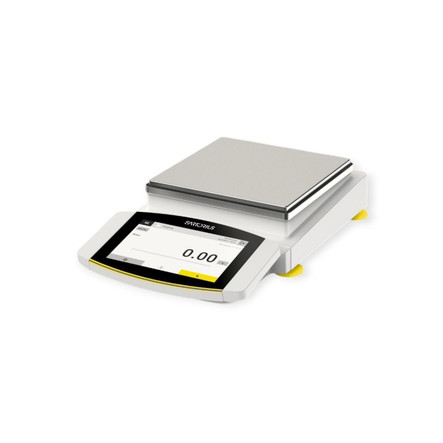

The Sartorius Cubis II MCA is a premium, high-performance laboratory balance designed for precision weighing in research, pharmaceutical, and laboratory applications. It offers unmatched compliance with regulatory standards such as USP, GLP/GMP, and 21 CFR Part 11. Cubis II balances provide intuitive touchscreen operation, automatic leveling, automatic internal calibration, and a range of connectivity options for seamless data transfer. Sartorius Cubis II balances are at the pinnacle of reliability, functionality, and accuracy for analytical weighing.
Features
- Automatic internal calibration (isoCAL)
- Internal motorized automatic levelling
- 7” color touchscreen TFT display in 16:9 format with intuitive user interface
- Monolithic weigh cell technology
- Fast stabilization times
- Overload protection
- Lockdown capable to prevent tampering or theft
- Custom modularity with thousands of hardware/software applications
- Easy connection to PCs for weighing data transfer directly into spreadsheets or documents such as Microsoft® Excel or Word
- Pharmaceutical and GxP compliance
- 21 CFR Part 11 and EU Annex 11 compliance with complete traceability
- High chemical resistance
- CalAudit Trail with automatic documentation of calibration and levelling processes, with date and time stamp
- Controlled access to balance settings with User Management
- Standard non-verified version for all units
- Made in Germany
Software
No QApp Software Included
Documentation
Sartorius Cubis II Brochure Sartorius Cubis II QApp Guide Sartorius Cubis II Warranty Policy
Sartorius Cubis II Specifications Sartorius Cubis MCA User Manual
- Capacity:
- 1200 g
- Readability:
- 0.01 g
- Repeatability:
- ± 0.007 g
- Linearity:
- ± 0.02 g
- Minimum weight according to USP (United States Pharmacopeia), Chap. 41:
- 8.2 g
- Calibration:
- Internal calibration
- Stabilization Time:
- 0.8 second (s)
- Leveling:
- Motorized automatic
- Weighing Units:
- Gram, kilogram, carat, pound, ounce, troy ounce, Hong Kong tael, Singapore tael, Taiwan tael, grain, pennyweights, milligram, parts per pound, China tael, mommes, Austrian carat, tola, baht, mesghal and Newton
- Communication:
- Ethernet, USB A, USB B, USB C, RS-232, 1 x peripheral connector for Sartorius accessories
- Display Type:
- Large high color touchscreen TFT display (7" in 16:9 format for MCA)
- Software Package(s) Included:
- None
- Draft Shield:
- No
- Power:
- AC adapter
- CE Marked:
- Yes
- Pan Size:
- 8.11" x 8.11" / 206 x 206 mm
- Weighing Module Dimensions (LxWxH):
- 16.73" x 9.45" x 3.74"/ 425 × 240 × 95 mm
- Brand:
- Sartorius
- Product Line:
- Cubis II Advanced
- Model:
- MCA1202S-2S00-0
- Country of Origin:
- Germany
