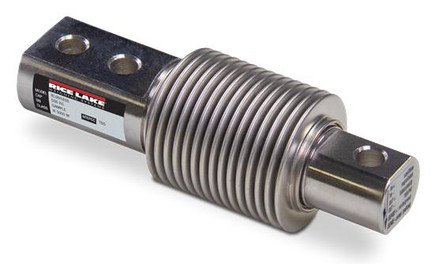

Rice Lake Weighing Systems RL32018S-HE 20 kg Stainless Steel Single Ended Beam Load Cell, NTEP
Features
- NTEP Certified 1:4,000S/1:5,000M
- NTEP CC 18-107
- OIML C3
- 20 kg capacity rating
- Stainless steel construction
- IP 68 rating
- 2 mV/V output
- Load cell cable length 3 m
- Safe overload up to 150% capacity
Interchange
- Rice Lake Weighing Systems RLHBB
1 year limited manufacturer's warranty
- Approvals:
- FM
- NTEP:
- Yes
- OIML:
- C3
- Capacity:
- 20 kg
- Safe Overload:
- 150% capacity
- Length:
- 4.72"
- Width:
- 1.63"
- Height:
- 1.63"
- Construction:
- Stainless Steel
- Cable Color Code:
- Blue +Excitation, Black €“Excitation, White +Signal, Red €“Signal, Green +Sense, Yellow -Sense
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V +/- 10%
- Input Resistance:
- 350 +/- 3 ohms
- Output Resistance:
- 400 +/- 20 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -30°C to 70°C
- Seal Type:
- Hermetically Sealed
- IP Rating:
- IP68
- Combined Error:
- +/- 0.017% full scale
- Cable Length:
- 3 m
- Part Number:
- 188693
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL9018SS
